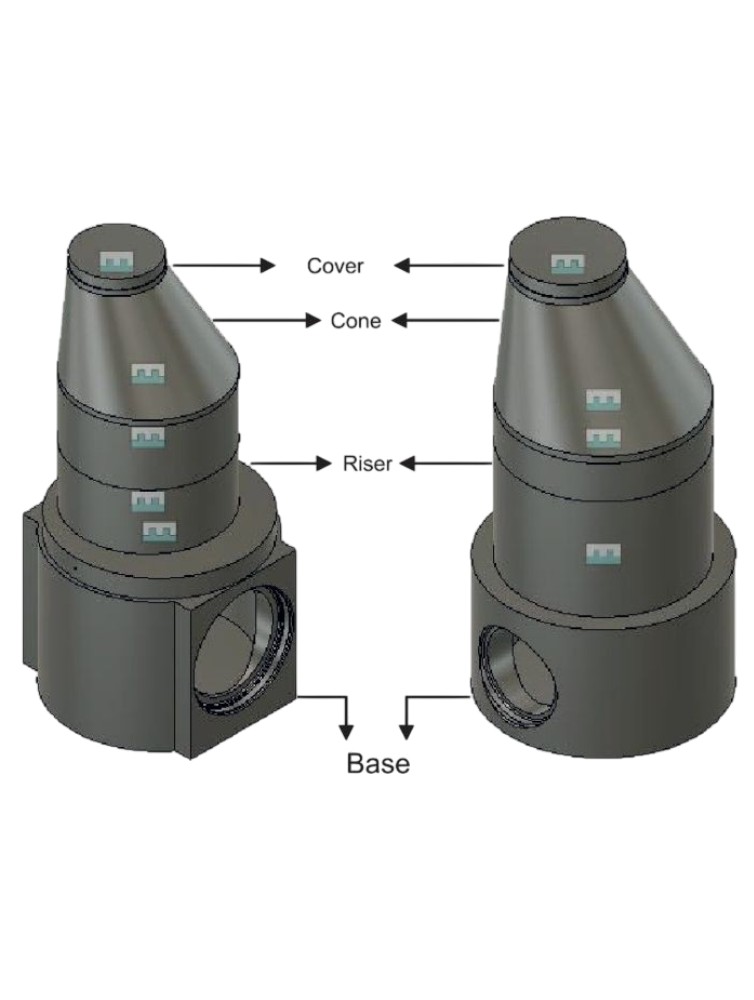

Precast Manhole System is a replacement to existing cast at site & brick masonry construction, it has it’s own advantages. A typical Manhole System includes the following components.

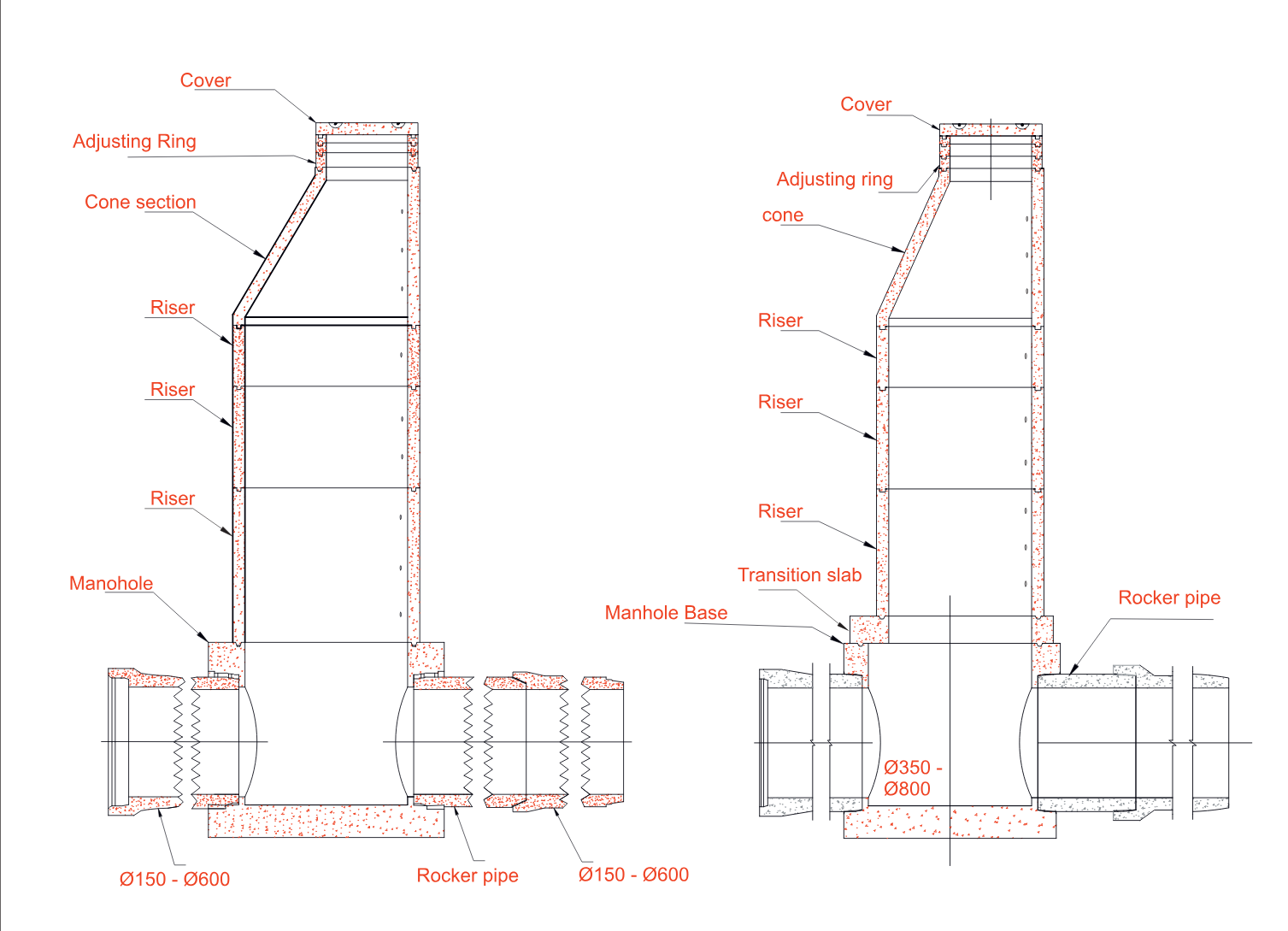

Base Section
Riser Section
Cone Eccentric Section
Adjusting Ring
Cover & Frame
Transition Slab

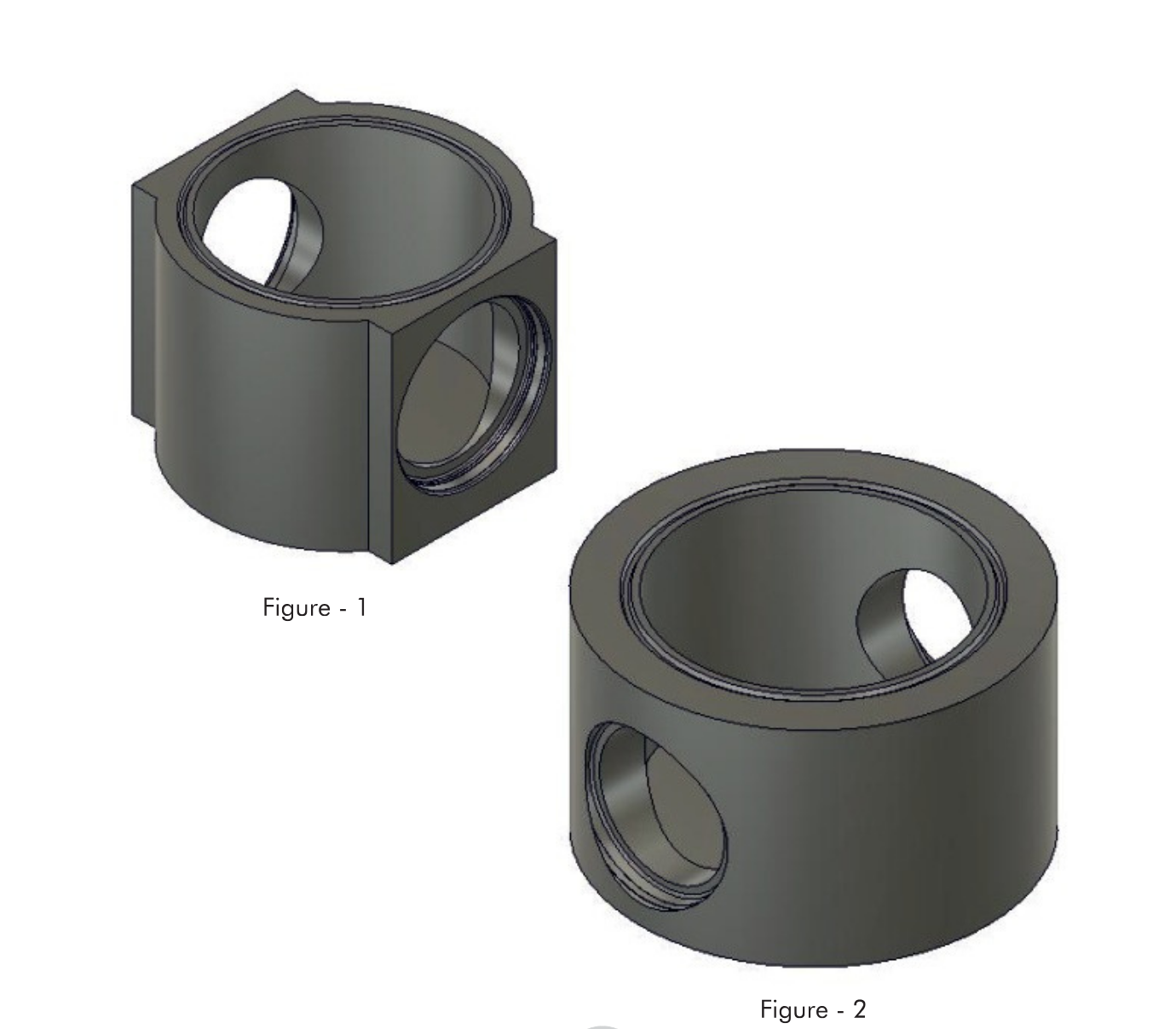

The Base Section is manufactured monolithically with base slab (flush/projected) along the Base Section has several functions, such as:
To establish a solid foundation for the whole precast Manhole system and the connecting pipes and carry load of an eventual traffic.
To connect two or more adjoining pipes preferably with flexible joints, having the same specifications as the joints in the adjoining and cleaning.
To provide easy access to the pipelines for inspection and cleaning
To divert the main pipeline direction if required.
The function of riser unit is to provide a safe access connection from ground level to the pipeline. Riser section consists of a cylindrical section with an effective depth of 300mm to 1500mm. The provision for house service connection in the riser section of the manhole may be provided and if provided then dummy hole deep impression having minimum thickness of wall 50mm at that location for facilitating house service connection shall be provided.
Cone section is commonly installed on the riser section. The function of the cone section is to reduce the diameter of the top cover and still provide an opening large enough for a person to enter into the precast manhole system. Also the cone section has the function of distributing an eventual traffic load to the riser sections and further down to the base section. By using eccentric cones a straight vertical access is provided for the persons entering the precast manhole system. Cone Section may be manufactured with or without manhole frame Arrangement. The top opening of the cone section is Ø 560mm. However essentially tongue and groove joint/ internal flush joint between cone and frame shall be provided to take care of shear loads.
The function of the adjusting unit is to bring the top level of the precast manhole system to match the road top or level/any other specified level with any type of joint matching with its bottom and top components.
The function of the cover and frame is to close the access to the manhole. The cover and frame used for circular precast concrete manhole shall as per IS 12592.
Transition slab is component that serves to connect base section of the manhole to access shaft of diameter 1200mm. the type of joint shall be matched with it’s bottom and top components.
Manhole components can be jointed together with different types of joints
Internal Flush Joint.
Tongue/grooved Joint The main function of Joints is to prevent the Manhole components to dislocate from their ideal positions. To obtain a degree of fitness for this type of joints it is common to use mastic rubber and cement mortar as the sealing element.
|
DESCRIPTION
|
HEIGHT
|
INLET & OUTLET DIA
|
REMARK
|
|---|---|---|---|
|
1200MM MANHOLE BASE
|
650mm
|
100mm to 250mm
|
RCC, HDPE, DWC
|
|
1200MM MANHOLE BASE
|
1000mm
|
300mm to 600mm
|
|
|
ECCENTRIC CONE
|
900mm
|
|
|
|
RISER
|
900mm , 600mm , 300mm
|
|
|
|
ADJUSTING RING
|
100mm,75mm,50mm
|
|
|
|
COVER
|
100mm
|
|
|
|
1500MM MANHOLE BASE
|
1200mm
|
350mm to 450mm
|
RCC & HDPE PIPE, DWC
|
|
1500MM MANHOLE BASE
|
1400mm
|
450mm to 900mm
|
RCC & HDPE PIPE, DWC
|
|
TRANSITION SLAB
|
200mm
|
|
Required with every 1500m Manhole
|
| Depth of Manhole in mtr. | Base Ø 1200 mm (650mm 150mm to 300mm) | Riser 300mm | Riser 600mm | Riser 900mm | Cone 900mm | Grade Ring 50mm | Grade Ring 75mm | Grade Ring 100mm | Cover 100mm | Total Weight | Actual Height |
| 1.5 | 1 | - | - | - | 1 | - | - | - | 1 | 2.981 | 1650 |
| 1.6 | 1 | - | - | - | 1 | - | - | 1 | 1 | 3.031 | 1750 |
| 1.7 | 1 | - | - | - | 1 | - | - | 2 | 1 | 3.081 | 1850 |
| 1.8 | 1 | 1 | - | - | 1 | - | - | - | 1 | 3.272 | 1950 |
| 1.9 | 1 | 1 | - | - | 1 | - | - | 1 | 1 | 3.322 | 2050 |
| 2 | 1 | 1 | - | - | 1 | - | - | 2 | 1 | 3.372 | 2150 |
| 2.1 | 1 | - | 1 | - | 1 | - | - | - | 1 | 3.566 | 2250 |
| 2.2 | 1 | - | 1 | - | 1 | - | - | 1 | 1 | 3.616 | 2350 |
| 2.3 | 1 | - | 1 | - | 1 | - | - | 2 | 1 | 3.666 | 2450 |
| 2.4 | 1 | - | - | 1 | 1 | - | - | - | 1 | 3.86 | 2550 |
| 2.5 | 1 | - | - | 1 | 1 | - | - | 1 | 1 | 3.91 | 2650 |
| 2.6 | 1 | - | - | 1 | 1 | - | - | 2 | 1 | 3.96 | 2750 |
| 2.7 | 1 | 1 | - | 1 | 1 | - | - | - | 1 | 4.151 | 2850 |
| 2.8 | 1 | 1 | - | 1 | 1 | - | - | 1 | 1 | 4.201 | 2950 |
| 2.9 | 1 | 1 | - | 1 | 1 | - | - | 1 | 1 | 4.251 | 3050 |
| 3 | 1 | - | 1 | 1 | 1 | - | - | - | 1 | 4.445 | 3150 |
| 3.1 | 1 | - | 1 | 1 | 1 | - | - | 1 | 1 | 4.495 | 3250 |
| 3.2 | 1 | - | 1 | 1 | 1 | - | - | 2 | 1 | 4.545 | 3350 |
| 3.3 | 1 | - | - | 2 | 1 | - | - | - | 1 | 4.739 | 3450 |
| 3.4 | 1 | - | - | 2 | 1 | - | - | 1 | 1 | 4.789 | 3550 |
| 3.5 | 1 | - | - | 2 | 1 | - | - | 2 | 1 | 4.839 | 3650 |
| 3.6 | 1 | 1 | - | 2 | 1 | - | - | - | 1 | 5.03 | 3750 |
| 3.7 | 1 | 1 | - | 2 | 1 | - | - | 1 | 1 | 5.08 | 3850 |
| 3.8 | 1 | 1 | - | 2 | 1 | - | - | 2 | 1 | 5.13 | 3950 |
| 3.9 | 1 | - | 1 | 2 | 1 | - | - | - | 1 | 5.324 | 4050 |
| 4 | 1 | - | 1 | 2 | 1 | - | - | 1 | 1 | 5.374 | 4150 |
| 4.1 | 1 | - | 1 | 2 | 1 | - | - | 2 | 1 | 5.424 | 4250 |
| 4.2 | 1 | - | - | 3 | 1 | - | - | - | 1 | 5.474 | 4350 |
| 4.3 | 1 | - | - | 3 | 1 | - | - | 1 | 1 | 5.618 | 4450 |
| 4.4 | 1 | - | - | 3 | 1 | - | - | 2 | 1 | 5.668 | 4550 |
| 4.5 | 1 | 1 | - | 3 | 1 | - | - | - | 1 | 5.909 | 4650 |
| 4.6 | 1 | 1 | - | 3 | 1 | - | - | 1 | 1 | 5.959 | 4750 |
| 4.7 | 1 | 1 | - | 3 | 1 | - | - | 2 | 1 | 6.009 | 4850 |
| 4.8 | 1 | - | 1 | 3 | 1 | - | - | - | 1 | 6.203 | 4950 |
| 4.9 | 1 | - | 1 | 3 | 1 | - | - | 1 | 1 | 6.303 | 5050 |
| 5 | 1 | - | 1 | 3 | 1 | - | - | 2 | 1 | 6.497 | 5150 |
| 5.1 | 1 | - | - | 4 | 1 | - | - | - | 1 | 6.497 | 5250 |
| 5.2 | 1 | - | - | 4 | 1 | - | - | 1 | 1 | 6.547 | 5350 |
| 5.3 | 1 | - | - | 4 | 1 | - | - | 2 | 1 | 6.597 | 5450 |
| 5.4 | 1 | 1 | - | 4 | 1 | - | - | - | 1 | 6.788 | 5550 |
| 5.5 | 1 | 1 | - | 4 | 1 | - | - | 1 | 1 | 6.838 | 5650 |
| 5.6 | 1 | 1 | - | 4 | 1 | - | - | 2 | 1 | 9.938 | 5750 |
| 5.7 | 1 | - | 1 | 4 | 1 | - | - | - | 1 | 7.082 | 5850 |
| 5.8 | 1 | - | 1 | 4 | 1 | - | - | 1 | 1 | 7.132 | 5950 |
| 5.9 | 1 | - | 1 | 4 | 1 | - | - | 2 | 1 | 7.182 | 6050 |
| 6 | 1 | - | - | 4 | 1 | - | - | - | 1 | 7.373 | 6150 |
| 6.1 | 1 | - | - | 4 | 1 | - | - | - | 1 | 7.423 | 6250 |
| 6.2 | 1 | 1 | - | 4 | 1 | - | - | 2 | 1 | 7.473 | 6350 |
| 6.3 | 1 | 2 | 1 | 4 | 1 | - | - | - | 1 | 7.714 | 6450 |
| 6.4 | 1 | 1 | - | 5 | 1 | - | - | 1 | 1 | 7.717 | 6550 |
| 6.5 | 1 | 1 | - | 5 | 1 | - | - | 2 | 1 | 7.767 | 6650 |
| Depth of Manhole in mtr. | Base Ø 1200 mm (1000mm depth) | Riser | Cone 900mm | Grade Ring | Cover 100mm | Actual Height (mm) | ||||
| 300mm | 600mm | 900mm | 50mm | 75mm | 100mm | |||||
| 1.90 | 1 | - | - | 1 | 1 | 1 | - | - | 1 | 2,050 |
| 2.00 | 1 | - | - | 1 | 1 | 1 | - | 1 | 1 | 2,150 |
| 2.10 | 1 | - | - | 1 | 1 | 1 | - | 2 | 1 | 2,250 |
| 2.20 | 1 | 1 | - | 1 | 1 | 1 | - | - | 1 | 2,350 |
| 2.30 | 1 | 1 | - | 1 | 1 | 1 | - | 1 | 1 | 2,450 |
| 2.40 | 1 | 1 | - | 1 | 1 | 1 | - | 2 | 1 | 2,550 |
| 2.50 | 1 | - | 1 | 1 | 1 | 1 | - | - | 1 | 2,650 |
| 2.60 | 1 | - | 1 | 1 | 1 | 1 | - | 1 | 1 | 2,750 |
| 2.70 | 1 | - | 1 | 1 | 1 | 1 | - | 2 | 1 | 2,850 |
| 2.80 | 1 | - | - | 1 | 1 | 1 | - | - | 1 | 2,950 |
| 2.90 | 1 | - | - | 1 | 1 | 1 | - | 1 | 1 | 3,050 |
| 3.00 | 1 | - | - | 1 | 1 | 1 | - | 2 | 1 | 3,150 |
| 3.10 | 1 | 1 | - | 1 | 1 | 1 | - | - | 1 | 3,250 |
| 3.20 | 1 | 1 | - | 1 | 1 | 1 | - | 1 | 1 | 3,350 |
| 3.30 | 1 | 1 | - | 1 | 1 | 1 | - | 2 | 1 | 3,450 |
| 3.40 | 1 | - | 1 | 1 | 1 | 1 | - | - | 1 | 3,550 |
| 3.50 | 1 | - | 1 | 1 | 1 | 1 | - | 1 | 1 | 3,650 |
| 3.60 | 1 | - | 1 | 1 | 1 | 1 | - | 2 | 1 | 3,750 |
| 3.70 | 1 | - | - | 2 | 1 | 1 | - | - | 1 | 3,850 |
| 3.80 | 1 | - | - | 2 | 1 | 1 | - | 1 | 1 | 3,950 |
| 3.90 | 1 | - | - | 2 | 1 | 1 | - | 2 | 1 | 4,050 |
| 4.00 | 1 | 1 | - | 2 | 1 | 1 | - | - | 1 | 4,150 |
| 4.10 | 1 | 1 | - | 2 | 1 | 1 | - | 1 | 1 | 4,250 |
| 4.20 | 1 | 1 | - | 2 | 1 | 1 | - | 2 | 1 | 4,350 |
| 4.30 | 1 | - | 1 | 2 | 1 | 1 | - | - | 1 | 4,450 |
| 4.40 | 1 | - | 1 | 2 | 1 | 1 | - | 1 | 1 | 4,550 |
| 4.50 | 1 | - | 1 | 2 | 1 | 1 | - | 2 | 1 | 4,650 |
| 4.60 | 1 | - | - | 3 | 1 | 1 | - | - | 1 | 4,750 |
| 4.70 | 1 | - | - | 3 | 1 | 1 | - | 1 | 1 | 4,850 |
| 4.80 | 1 | - | - | 3 | 1 | 1 | - | 2 | 1 | 4,950 |
| 4.90 | 1 | 1 | - | 3 | 1 | 1 | - | - | 1 | 5,050 |
| 5.00 | 1 | 1 | - | 3 | 1 | 1 | - | 1 | 1 | 5,150 |
| 5.10 | 1 | 1 | - | 3 | 1 | 1 | - | 2 | 1 | 5,250 |
| 5.20 | 1 | - | 1 | 3 | 1 | 1 | - | - | 1 | 5,350 |
| 5.30 | 1 | - | 1 | 3 | 1 | 1 | - | 1 | 1 | 5,450 |
| 5.40 | 1 | - | 1 | 3 | 1 | 1 | - | 2 | 1 | 5,550 |
| 5.50 | 1 | - | - | 4 | 1 | 1 | - | - | 1 | 5,650 |
| 5.60 | 1 | - | - | 4 | 1 | 1 | - | 1 | 1 | 5,750 |
| 5.70 | 1 | - | - | 4 | 1 | 1 | - | 2 | 1 | 5,850 |
| 5.80 | 1 | 1 | - | 4 | 1 | 1 | - | - | 1 | 5,950 |
| 5.90 | 1 | 1 | - | 4 | 1 | 1 | - | 1 | 1 | 6,050 |
| 6.00 | 1 | 1 | - | 4 | 1 | 1 | - | 2 | 1 | 6,150 |
| 6.10 | 1 | - | 1 | 4 | 1 | 1 | - | - | 1 | 6,250 |
| 6.20 | 1 | - | 1 | 4 | 1 | 1 | - | 1 | 1 | 6,350 |
| 6.30 | 1 | - | 1 | 4 | 1 | 1 | - | 2 | 1 | 6,450 |
| 6.40 | 1 | - | - | 5 | 1 | 1 | - | - | 1 | 6,550 |
| 6.50 | 1 | - | - | 5 | 1 | 1 | - | 1 | 1 | 6,650 |
| 6.60 | 1 | - | - | 5 | 1 | 1 | - | 2 | 1 | 6,750 |
| Depth of Manhole in mtr. | Base Ø 1500 mm 1200mm (350mm to 450mm) | Transition Plate 200mm | Riser | Cone 900mm | Grade Ring | Cover 100mm | Actual Height | ||||
| 300mm | 600mm | 900mm | 50mm | 75mm | 100mm | ||||||
| 2.20 | 1 | 1 | - | - | - | 1 | - | - | - | 1 | 2,400 |
| 2.30 | 1 | 1 | - | - | - | 1 | - | - | 1 | 1 | 2,500 |
| 2.40 | 1 | 1 | - | - | - | 1 | - | - | 2 | 1 | 2,600 |
| 2.50 | 1 | 1 | 1 | - | - | 1 | - | - | - | 1 | 2,700 |
| 2.60 | 1 | 1 | 1 | - | - | 1 | - | - | 1 | 1 | 2,800 |
| 2.70 | 1 | 1 | 1 | - | - | 1 | - | - | 2 | 1 | 2,900 |
| 2.80 | 1 | 1 | - | 1 | - | 1 | - | - | - | 1 | 3,000 |
| 2.90 | 1 | 1 | - | 1 | - | 1 | - | - | 1 | 1 | 3,100 |
| 3.00 | 1 | 1 | - | 1 | - | 1 | - | - | 2 | 1 | 3,200 |
| 3.10 | 1 | 1 | - | - | 1 | 1 | - | - | - | 1 | 3,300 |
| 3.20 | 1 | 1 | - | - | 1 | 1 | - | - | 1 | 1 | 3,400 |
| 3.30 | 1 | 1 | - | - | 1 | 1 | - | - | 2 | 1 | 3,500 |
| 3.40 | 1 | 1 | 1 | - | 1 | 1 | - | - | - | 1 | 3,600 |
| 3.50 | 1 | 1 | 1 | - | 1 | 1 | - | - | 1 | 1 | 3,700 |
| 3.60 | 1 | 1 | 1 | - | 1 | 1 | - | - | 2 | 1 | 3,800 |
| 3.70 | 1 | 1 | - | 1 | 1 | 1 | - | - | - | 1 | 3,900 |
| 3.80 | 1 | 1 | - | 1 | 1 | 1 | - | - | 1 | 1 | 4,000 |
| 3.90 | 1 | 1 | - | 1 | 1 | 1 | - | - | 2 | 1 | 4,100 |
| 4.00 | 1 | 1 | - | - | 2 | 1 | - | - | - | 1 | 4,200 |
| 4.10 | 1 | 1 | - | - | 2 | 1 | - | - | 1 | 1 | 4,300 |
| 4.20 | 1 | 1 | - | - | 2 | 1 | - | - | 2 | 1 | 4,400 |
| 4.30 | 1 | 1 | 1 | - | 2 | 1 | - | - | - | 1 | 4,500 |
| 4.40 | 1 | 1 | 1 | - | 2 | 1 | - | - | 1 | 1 | 4,600 |
| 4.50 | 1 | 1 | 1 | - | 2 | 1 | - | - | 2 | 1 | 4,700 |
| 4.60 | 1 | 1 | - | 1 | 2 | 1 | - | - | - | 1 | 4,800 |
| 4.70 | 1 | 1 | - | 1 | 2 | 1 | - | - | 1 | 1 | 4,900 |
| 4.80 | 1 | 1 | - | 1 | 2 | 1 | - | - | 2 | 1 | 5,000 |
| 4.90 | 1 | 1 | - | - | 3 | 1 | - | - | - | 1 | 5,100 |
| 5.00 | 1 | 1 | - | - | 3 | 1 | - | - | 1 | 1 | 5,200 |
| 5.10 | 1 | 1 | - | - | 3 | 1 | - | - | 2 | 1 | 5,300 |
| 5.20 | 1 | 1 | 1 | - | 3 | 1 | - | - | - | 1 | 5,400 |
| 5.30 | 1 | 1 | 1 | - | 3 | 1 | - | - | 1 | 1 | 5,500 |
| 5.40 | 1 | 1 | 1 | - | 3 | 1 | - | - | 2 | 1 | 5,600 |
| 5.50 | 1 | 1 | - | 1 | 3 | 1 | - | - | - | 1 | 5,700 |
| 5.60 | 1 | 1 | - | 1 | 3 | 1 | - | - | 1 | 1 | 5,800 |
| 5.70 | 1 | 1 | - | 1 | 3 | 1 | - | - | 2 | 1 | 5,900 |
| 5.80 | 1 | 1 | - | - | 4 | 1 | - | - | - | 1 | 6,000 |
| 5.90 | 1 | 1 | - | - | 4 | 1 | - | - | 1 | 1 | 6,100 |
| 6.00 | 1 | 1 | - | - | 4 | 1 | - | - | 2 | 1 | 6,200 |
| 6.10 | 1 | 1 | 1 | - | 4 | 1 | - | - | - | 1 | 6,300 |
| 6.20 | 1 | 1 | 1 | - | 4 | 1 | - | - | 1 | 1 | 6,400 |
| 6.30 | 1 | 1 | 1 | - | 4 | 1 | - | - | 2 | 1 | 6,500 |
| 6.40 | 1 | 1 | - | 1 | 4 | 1 | - | - | - | 1 | 6,600 |
| 6.50 | 1 | 1 | - | 1 | 4 | 1 | - | - | 1 | 1 | 6,700 |
| 6.60 | 1 | 1 | - | 1 | 4 | 1 | - | - | 2 | 1 | 6,800 |
| 6.70 | 1 | 1 | - | - | 5 | 1 | - | - | - | 1 | 6,900 |
| 6.80 | 1 | 1 | - | - | 5 | 1 | - | - | 1 | 1 | 7,000 |
| 6.90 | 1 | 1 | - | - | 5 | 1 | - | - | 2 | 1 | 7,100 |
| 7.00 | 1 | 1 | 1 | - | 5 | 1 | - | - | - | 1 | 7,200 |
| 7.10 | 1 | 1 | 1 | - | 5 | 1 | - | - | 1 | 1 | 7,300 |
| 7.20 | 1 | 1 | 1 | - | 5 | 1 | - | - | 2 | 1 | 7,400 |
| 7.30 | 1 | 1 | - | 1 | 5 | 1 | - | - | - | 1 | 7,500 |
| 7.40 | 1 | 1 | - | 1 | 5 | 1 | - | - | 1 | 1 | 7,600 |
| 7.50 | 1 | 1 | - | 1 | 5 | 1 | - | - | 2 | 1 | 7,700 |
| 7.60 | 1 | 1 | - | - | 6 | 1 | - | - | - | 1 | 7,800 |
| 7.70 | 1 | 1 | - | - | 6 | 1 | - | - | 1 | 1 | 7,900 |
| 7.80 | 1 | 1 | - | - | 6 | 1 | - | - | 2 | 1 | 8,000 |
| 7.90 | 1 | 1 | 1 | - | 6 | 1 | - | - | - | 1 | 8,100 |
| 8.00 | 1 | 1 | 1 | - | 6 | 1 | - | - | 1 | 1 | 8,200 |
| 8.10 | 1 | 1 | 1 | - | 6 | 1 | - | - | 2 | 1 | 8,300 |
| 8.20 | 1 | 1 | - | 1 | 6 | 1 | - | - | - | 1 | 8,400 |
| 8.30 | 1 | 1 | - | 1 | 6 | 1 | - | - | 1 | 1 | 8,500 |
| 8.40 | 1 | 1 | - | 1 | 6 | 1 | - | - | 2 | 1 | 8,600 |
| 8.50 | 1 | 1 | - | - | 7 | 1 | - | - | - | 1 | 8,700 |
| 8.60 | 1 | 1 | - | - | 7 | 1 | - | - | 1 | 1 | 8,800 |
| 8.70 | 1 | 1 | - | - | 7 | 1 | - | - | 2 | 1 | 8,900 |
| 8.80 | 1 | 1 | 1 | - | 7 | 1 | - | - | - | 1 | 9,000 |
| 8.90 | 1 | 1 | 1 | - | 7 | 1 | - | - | 1 | 1 | 9,100 |
| 9.00 | 1 | 1 | 1 | - | 7 | 1 | - | - | 2 | 1 | 9,200 |
| Depth of Manhole in mtr. | Base Ø 1500 mm 1400mm (500mm to 800mm) | Transition Plate 200mm | Riser | Cone 900mm | Grade Ring | Cover 100mm | Actual Height | ||||
| 300mm | 600mm | 900mm | 50mm | 75mm | 100mm | ||||||
| 2.40 | 1 | 1 | - | - | - | 1 | - | - | - | 1 | 2,600 |
| 2.50 | 1 | 1 | - | - | - | 1 | - | - | 1 | 1 | 2,700 |
| 2.60 | 1 | 1 | - | - | - | 1 | - | - | 2 | 1 | 2,800 |
| 2.70 | 1 | 1 | 1 | - | - | 1 | - | - | - | 1 | 2,900 |
| 2.80 | 1 | 1 | 1 | - | - | 1 | - | - | 1 | 1 | 3,000 |
| 2.90 | 1 | 1 | 1 | - | - | 1 | - | - | 2 | 1 | 3,100 |
| 3.00 | 1 | 1 | - | 1 | - | 1 | - | - | - | 1 | 3,200 |
| 3.10 | 1 | 1 | - | 1 | - | 1 | - | - | 1 | 1 | 3,300 |
| 3.20 | 1 | 1 | - | 1 | - | 1 | - | - | 2 | 1 | 3,400 |
| 3.30 | 1 | 1 | - | - | 1 | 1 | - | - | - | 1 | 3,500 |
| 3.40 | 1 | 1 | 1 | - | 1 | 1 | - | - | 1 | 1 | 3,600 |
| 3.50 | 1 | 1 | 1 | - | 1 | 1 | - | - | 2 | 1 | 3,700 |
| 3.60 | 1 | 1 | 1 | - | 1 | 1 | - | - | - | 1 | 3,800 |
| 3.70 | 1 | 1 | - | 1 | 1 | 1 | - | - | 1 | 1 | 3,900 |
| 3.80 | 1 | 1 | - | 1 | 1 | 1 | - | - | 2 | 1 | 4,000 |
| 3.90 | 1 | 1 | - | 1 | 1 | 1 | - | - | - | 1 | 4,100 |
| 4.00 | 1 | 1 | - | - | 1 | 1 | - | - | 1 | 1 | 4,200 |
| 4.10 | 1 | 1 | - | - | 1 | 1 | - | - | 2 | 1 | 4,300 |
| 4.20 | 1 | 1 | - | - | 2 | 1 | - | - | - | 1 | 4,400 |
| 4.30 | 1 | 1 | - | - | 2 | 1 | - | - | 1 | 1 | 4,500 |
| 4.40 | 1 | 1 | - | - | 2 | 1 | - | - | 2 | 1 | 4,600 |
| 4.50 | 1 | 1 | 1 | - | 2 | 1 | - | - | - | 1 | 4,700 |
| 4.60 | 1 | 1 | 1 | - | 2 | 1 | - | - | 1 | 1 | 4,800 |
| 4.70 | 1 | 1 | 1 | - | 2 | 1 | - | - | 2 | 1 | 4,900 |
| 4.80 | 1 | 1 | - | 1 | 2 | 1 | - | - | - | 1 | 5,000 |
| 4.90 | 1 | 1 | - | 1 | 2 | 1 | - | - | 1 | 1 | 5,100 |
| 5.00 | 1 | 1 | - | 1 | 2 | 1 | - | - | 2 | 1 | 5,200 |
| 5.10 | 1 | 1 | - | - | 3 | 1 | - | - | - | 1 | 5,300 |
| 5.20 | 1 | 1 | - | - | 3 | 1 | - | - | 1 | 1 | 5,400 |
| 5.30 | 1 | 1 | - | - | 3 | 1 | - | - | 2 | 1 | 5,500 |
| 5.40 | 1 | 1 | 1 | - | 3 | 1 | - | - | - | 1 | 5,600 |
| 5.50 | 1 | 1 | 1 | - | 3 | 1 | - | - | 1 | 1 | 5,700 |
| 5.60 | 1 | 1 | 1 | - | 3 | 1 | - | - | 2 | 1 | 5,800 |
| 5.70 | 1 | 1 | - | 1 | 3 | 1 | - | - | - | 1 | 5,900 |
| 5.80 | 1 | 1 | - | 1 | 3 | 1 | - | - | 1 | 1 | 6,000 |
| 5.90 | 1 | 1 | - | 1 | 3 | 1 | - | - | 2 | 1 | 6,100 |
| 6.00 | 1 | 1 | - | - | 4 | 1 | - | - | - | 1 | 6,200 |
| 6.10 | 1 | 1 | - | - | 4 | 1 | - | - | 1 | 1 | 6,300 |
| 6.20 | 1 | 1 | - | - | 4 | 1 | - | - | 2 | 1 | 6,400 |
| 6.30 | 1 | 1 | 1 | - | 4 | 1 | - | - | - | 1 | 6,500 |
| 6.40 | 1 | 1 | 1 | - | 4 | 1 | - | - | 1 | 1 | 6,600 |
| 6.50 | 1 | 1 | 1 | - | 4 | 1 | - | - | 2 | 1 | 6,700 |
| 6.60 | 1 | 1 | - | 1 | 4 | 1 | - | - | - | 1 | 6,800 |
| 6.70 | 1 | 1 | - | 1 | 4 | 1 | - | - | 1 | 1 | 6,900 |
| 6.80 | 1 | 1 | - | 1 | 4 | 1 | - | - | 2 | 1 | 7,000 |
| 6.90 | 1 | 1 | - | - | 5 | 1 | - | - | - | 1 | 7,100 |
| 7.00 | 1 | 1 | - | - | 5 | 1 | - | - | 1 | 1 | 7,200 |
| 7.10 | 1 | 1 | - | - | 5 | 1 | - | - | 2 | 1 | 7,300 |
| 7.20 | 1 | 1 | 1 | - | 5 | 1 | - | - | - | 1 | 7,400 |
| 7.30 | 1 | 1 | 1 | - | 5 | 1 | - | - | 1 | 1 | 7,500 |
| 7.40 | 1 | 1 | 1 | - | 5 | 1 | - | - | 2 | 1 | 7,600 |
| 7.50 | 1 | 1 | - | 1 | 5 | 1 | - | - | - | 1 | 7,700 |
| 7.60 | 1 | 1 | - | 1 | 5 | 1 | - | - | 1 | 1 | 7,800 |
| 7.70 | 1 | 1 | - | 1 | 5 | 1 | - | - | 2 | 1 | 7,900 |
| 7.80 | 1 | 1 | - | - | 6 | 1 | - | - | - | 1 | 8,000 |
| 7.90 | 1 | 1 | - | - | 6 | 1 | - | - | 1 | 1 | 8,100 |
| 8.00 | 1 | 1 | - | - | 6 | 1 | - | - | 2 | 1 | 8,200 |
| 8.10 | 1 | 1 | 1 | - | 6 | 1 | - | - | - | 1 | 8,300 |
| 8.20 | 1 | 1 | 1 | - | 6 | 1 | - | - | 1 | 1 | 8,400 |
| 8.30 | 1 | 1 | 1 | - | 6 | 1 | - | - | 2 | 1 | 8,500 |
| 8.40 | 1 | 1 | - | 1 | 6 | 1 | - | - | - | 1 | 8,600 |
| 8.50 | 1 | 1 | - | 1 | 6 | 1 | - | - | 1 | 1 | 8,700 |
| 8.60 | 1 | 1 | - | 1 | 6 | 1 | - | - | 2 | 1 | 8,800 |
| 8.70 | 1 | 1 | - | - | 7 | 1 | - | - | - | 1 | 8,900 |
| 8.80 | 1 | 1 | - | - | 7 | 1 | - | - | 1 | 1 | 9,000 |
| 8.90 | 1 | 1 | - | - | 7 | 1 | - | - | 2 | 1 | 9,100 |
| 9.00 | 1 | 1 | 1 | - | 7 | 1 | - | - | - | 1 | 9,200 |
